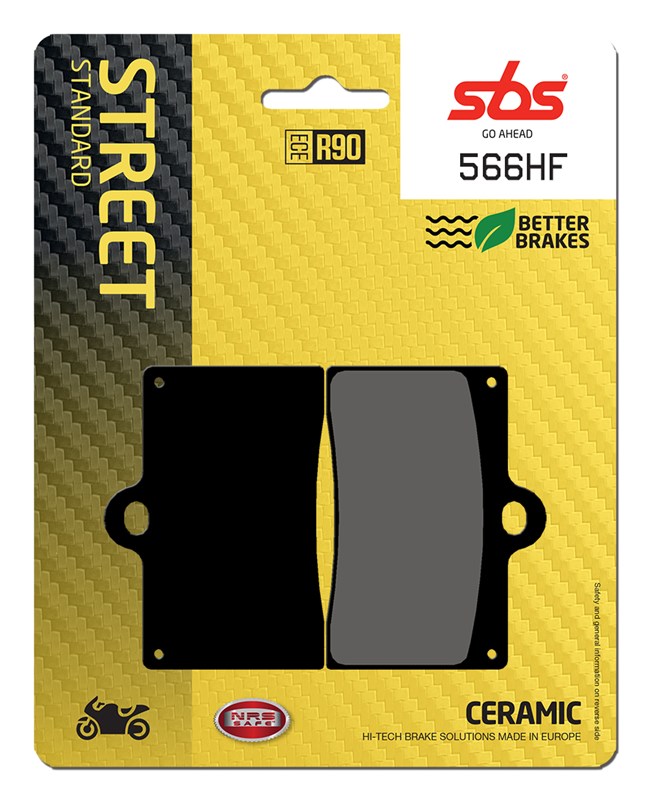

    566HF

    HF - CERAMIC
    FRONT • REAR

    • OE replacement compound for bikes with non-sintered pads
    • Designed for commuters, general-purpose street and cruiser bikes
    • Ceramic compound offers long pad life, low dust and low brake disc/rotor wear
    • Excellent, consistent performance in wet and dry conditions
    • NUCAP NRS technology secures a mechanical and indestructible bonding of the compound
    • Innovative noise-reduction technology for high comfort and low development of noise



    Fitment listing⏷ Specifications⏷
    WHERE TO BUY

    Specifications

    Product type Brake Pads
    Quality HF
    Catalog number 566
    Numbers in set 2

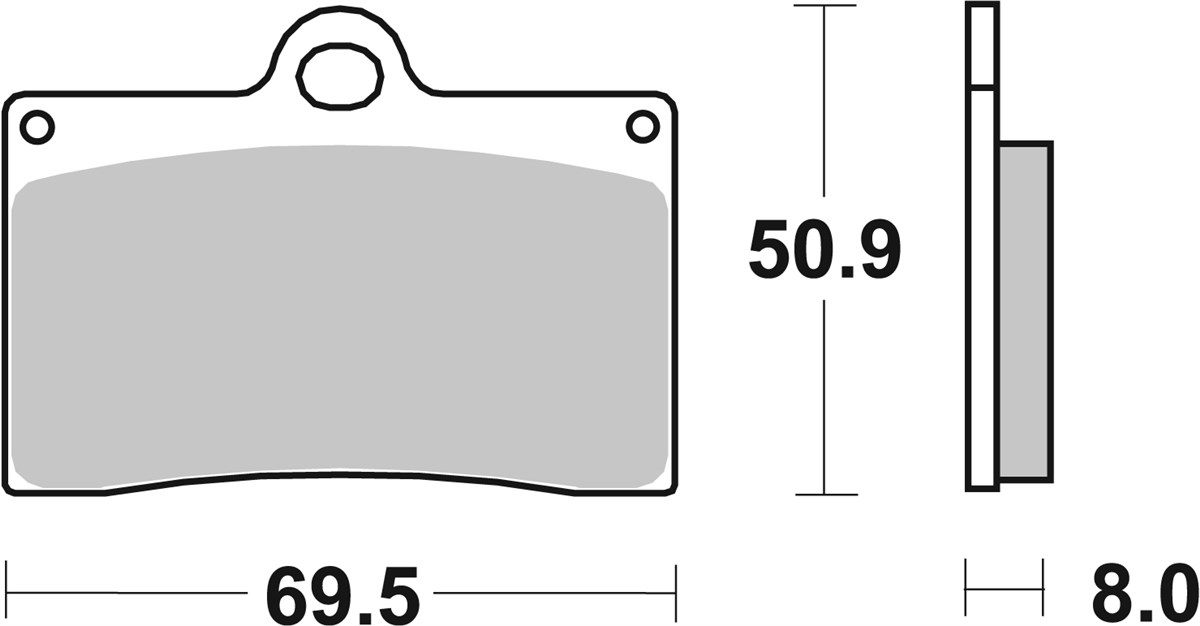

    Rear plate height 50.9
    Rear plate width 69.5
    Total thickness 8

    Fitment listing

    Brand Model Use CCM Year Select
    APRILIA RS Brake Pad front 125 2020 - 2024
    APRILIA RS Brake Pad front 250 1995 - 1996
    APRILIA RS Replica Brake Pad front 125 2020 - 2024
    APRILIA RS-4 (J.Juan cal.) Brake Pad front 125 2011 - 2019
    BETA Euro Brake Pad front 350 1999 - 2003
    BETA Jonathan Brake Pad front 125 1999 - 2005
    BETA Jonathan Brake Pad front 350 2002 - 2003
    BETA M4 (Brembo cal.) Brake Pad front 350 2006 - 2007
    BIMOTA 1D Tesi Brake pad front 2 sets needed 851 1991 1991
    BIMOTA 1D Tesi Brake pad front 2 sets needed 900 1993 1993
    BIMOTA 1D Tesi Brake pad front 2 sets needed 906 1991 1991
    BIMOTA 2D Tesi Brake pad front 2 sets needed 1000 2004 - 2006
    BIMOTA BB1 Supermono Brake pad front 2 sets needed 650 1997 - 2000
    BIMOTA Bellaria Brake pad front 2 sets needed 600 1991 1991
    BIMOTA DB2 Brake pad front 2 sets needed 900 1992 - 2000
    BIMOTA DB3 Mantra Brake pad front 2 sets needed 900 1997 - 2000
    BIMOTA Dieci Brake pad front 2 sets needed 1002 1991 1991
    BIMOTA Furano Brake pad front 2 sets needed 1000 1992 - 1993
    BIMOTA SB6 Brake pad front 2 sets needed 1100 1997 - 2000
    BIMOTA SB7 Brake pad front 2 sets needed 750 1996 - 0
    BIMOTA Vdue Brake pad front 2 sets needed 500 1997 - 2000
    BIMOTA YB11 Brake pad front 2 sets needed 1000 1997 - 2000
    BIMOTA YB4 Brake pad front 2 sets needed 750 1989 1989
    BIMOTA YB6 Brake pad front 2 sets needed 1000 1989 1989
    BIMOTA YB7 Brake pad front 2 sets needed 400 1989 1989
    BIMOTA YB8 Brake pad front 2 sets needed 1000 1990 1990
    BIMOTA YB9 SRI Brake pad front 2 sets needed 600 1997 1997
    BORILE B CR, MT Brake Pad front 500 2002 - 2004
    BREMBO RACING CALIPERS Billet 20.4756.52/62, racing Caliper 0 0 0
    BREMBO RACING CALIPERS Goldline single pin 20.5165.55/65, road Caliper 0 0 0
    BRIXTON BX Crossfire Brake Pad front 500 2015 - 2023
    BRIXTON BX X Crossfire Brake Pad front 500 2015 - 2023
    CAGIVA Mito Brake Pad front 125 1993 - 2007
    CAGIVA Mito Brake Pad front 500 2007 2007
    CAGIVA Planet Brake Pad front 125 1997 - 2007
    CAGIVA Raptor Brake Pad front 125 2003 - 2010
    CAGIVA River Brake Pad front 500 2000 - 2001
    CAGIVA River Brake Pad front 600 1994 - 1999
    CAGIVA SP Mito Brake Pad front 525 2008 - 2010
    CANNONDALE S Brake Pad front 440 2003 2003
    DUCATI 907 I. E. Brake pad front 2 sets needed 900 1990 - 1993
    DUCATI Biposto Brake pad front 2 sets needed 748 1995 - 1998
    DUCATI Biposto Brake pad front 2 sets needed 916 1994 - 1998
    DUCATI FE Brake pad front 2 sets needed 900 1997 - 1998
    DUCATI M Monster Brake Pad front 600 1994 - 1999
    DUCATI M Street Monster Brake pad front 2 sets needed 900 1994 - 1999
    DUCATI M, IL Monster Brake pad front 2 sets needed 900 1993 - 1999
    DUCATI Monster Brake pad front 2 sets needed 750 1996 - 1999
    DUCATI Roche Replica Brake pad front 2 sets needed 888 1991 1991
    DUCATI Single Brake pad front 2 sets needed 502 1993 1993
    DUCATI SL Brake pad front 2 sets needed 900 1992 - 1997
    DUCATI SP Brake pad front 2 sets needed 748 1995 - 1997
    DUCATI SP V Brake pad front 2 sets needed 888 1993 1993
    DUCATI SP4 Brake pad front 2 sets needed 888 1992 - 1995
    DUCATI SPO Brake pad front 2 sets needed 888 1993 1993
    DUCATI SPS Brake pad front 2 sets needed 888 1992 - 1995
    DUCATI SS Brake Pad front 750 1991 - 1998
    DUCATI SS Brake pad front 2 sets needed 900 1990 - 1994
    DUCATI SS Supersport Brake Pad front 600 1995 - 2000
    DUCATI SS Supersport Brake Pad front 750 1995 - 1999
    DUCATI SS Supersport Brake Pad front 900 1995 - 1997
    DUCATI SS, Carenara Brake Pad front 750 1992 - 1998
    DUCATI SS, Junior Brake pad front 2 sets needed 400 1992 - 1997
    DUCATI SS, Nuda Brake Pad front 400 1992 - 1996
    DUCATI SS, Nuda Brake Pad front 750 1992 1992
    DUCATI SSR Brake pad front 2 sets needed 900 1992 1992
    DUCATI Strada Brake pad front 2 sets needed 851 1989 1989
    DUCATI Strada Brake pad front 2 sets needed 851 1991 - 1992
    DUCATI Strada Brake pad front 2 sets needed 888 1993 1993
    DUCATI Super Sport Brake pad front 2 sets needed 750 1992 - 1994
    DUCATI Superbike Brake pad front 2 sets needed 851 1990 1990
    DUCATI Superbike Brake pad front 2 sets needed 888 1993 1993
    DUCATI Supermono Brake pad front 2 sets needed 502 1993 - 1995
    DUCATI Supermono Brake pad front 2 sets needed 550 1993 - 1995
    FANTIC TZ SM Brake Pad front 125 2012 2012
    GASGAS SM Brake Pad front 125 2002 - 2013
    GASGAS SM Brake Pad front 250 2002 - 2013
    GASGAS SM fse Brake Pad front 400 2002 2002
    GASGAS SM fse Brake Pad front 450 2003 - 2006
    GASGAS SM FSR Brake Pad front 450 2007 - 2013
    GILERA Saturno Bialbero Brake Pad front 350 1990 1990
    GILERA Saturno Bialbero Brake Pad front 500 1990 1990
    GILERA Saturno Piuma Brake Pad front 500 1990 - 1994
    HUSQVARNA SM R Brake Pad front 400 2002 2002
    HUSQVARNA SM R Brake Pad front 570 2001 - 2008
    ITALJET Grifon Brake Pad front 900 2000 2000
    J. J. COBAS TR1 Brake Pad front 250 1985 1985
    KTM Duke Brake Pad front 600 1993 - 1994
    KTM Duke Brake Pad front 620 1996 - 1998
    KTM Duke Brake Pad front 640 1999 - 2002
    KTM LC4 Supermoto Brake Pad front 640 2003 2003
    KTM SMC Supermoto Brake Pad front 660 2003 2003
    KTM Sting Brake Pad front 125 1999 1999
    LAVERDA - Brake pad front 2 sets needed 650 1992 1992
    LAVERDA 668 Brake Pad front 668 1996 - 1997
    LAVERDA Cup Brake pad front 2 sets needed 750 1998 - 2001
    LAVERDA Diamante Brake pad front 2 sets needed 750 1997 - 2001
    LAVERDA Ghost Strike Brake pad front 2 sets needed 750 1997 - 2001
    LAVERDA Ghost, Diamante Brake pad front 2 sets needed 668 1997 1997
    LAVERDA JOTA Brake Pad front 1000 1995 1995
    LAVERDA S Formula Brake pad front 2 sets needed 750 1997 - 2001
    LAVERDA S, S Carenata Brake pad front 2 sets needed 750 1997 - 2001
    LAVERDA Sport Brake pad front 2 sets needed 750 1999 - 2001
    LAVERDA Strike/Black Strike Brake pad front 2 sets needed 750 1999 - 2001
    LAVERDA T8 Brake pad front 2 sets needed 750 1998 - 2001
    LAVERDA TTS Brake pad front 2 sets needed 800 1999 1999
    MOTO-GUZZI California Jackal Brake pad front 2 sets needed 1100 2000 2000
    MOTO-GUZZI California Jackal Basic Brake Pad front 1100 2000 2000
    MOTO-GUZZI California Special Brake pad front 2 sets needed 1100 1999 - 2000
    MOTO-GUZZI Daytona Brake pad front 2 sets needed 1000 1991 - 2002
    MOTO-GUZZI EV California Brake pad front 2 sets needed 1100 1997 - 2000
    MOTO-GUZZI Ippogrifo Brake Pad front 750 1997 1997
    MOTO-GUZZI Quota Brake pad front 2 sets needed 1000 1992 1992
    MOTO-GUZZI RS Daytona Brake pad front 2 sets needed 1000 1997 - 2000
    MOTO-GUZZI Sport Brake pad front 2 sets needed 1100 1996 - 2004
    MOTO-GUZZI V10 Centauro Brake pad front 2 sets needed 1000 1996 - 2000
    MOTO-GUZZI V11 Sport Brake pad front 2 sets needed 1100 1997 - 2000
    MZ (MUZ) Skorpion Cup Brake Pad front 660 1999 1999
    MZ (MUZ) Skorpion Replica Brake pad front 2 sets needed 660 1997 - 1999
    MZ (MUZ) Skorpion Sport Brake Pad front 660 1995 - 1999
    MZ (MUZ) Skorpion Tour Brake Pad front 660 1995 - 2000
    MZ (MUZ) Skorpion Traveller Brake Pad front 660 1999 - 2000
    NORTON F-1 Brake pad front 2 sets needed 600 1990 1990
    NORTON TT Brake pad front 2 sets needed 600 1992 1992
    PGO G-Max Brake Pad front 250 2006 - 2007
    REVTECH Wilwood Caliper front/rear Caliper 0 0 0
    SACHS B-805 Brake pad front 2 sets needed 800 2002 - 2004
    SACHS MadAss Brake pad front 2 sets needed 500 2005 - 2008
    SACHS Roadster V1.6 Brake Pad front 650 2001 - 2005
    SACHS Roadster V2 Brake pad front 2 sets needed 800 2000 - 2005
    SACHS S-805 Brake pad front 2 sets needed 800 2003 - 2004
    SACHS X-Road Brake Pad front 125 2005 - 2007
    SACHS XTC Brake Pad front 125 1999 - 2007
    SACHS XTC-N Brake Pad front 125 1999 - 2007
    VOXAN Cafe Racer Brake pad front 2 sets needed 1000 2001 - 2006
    VOXAN Roadster Brake pad front 2 sets needed 1000 2001 - 2006
    YAMAHA SZR Brake Pad front 660 1996 - 2001
    YAMAHA TZR R Brake pad front 2 sets needed 250 1994 1994
